Beverage Can Dimensions: Size, Height & Diameter (2026)

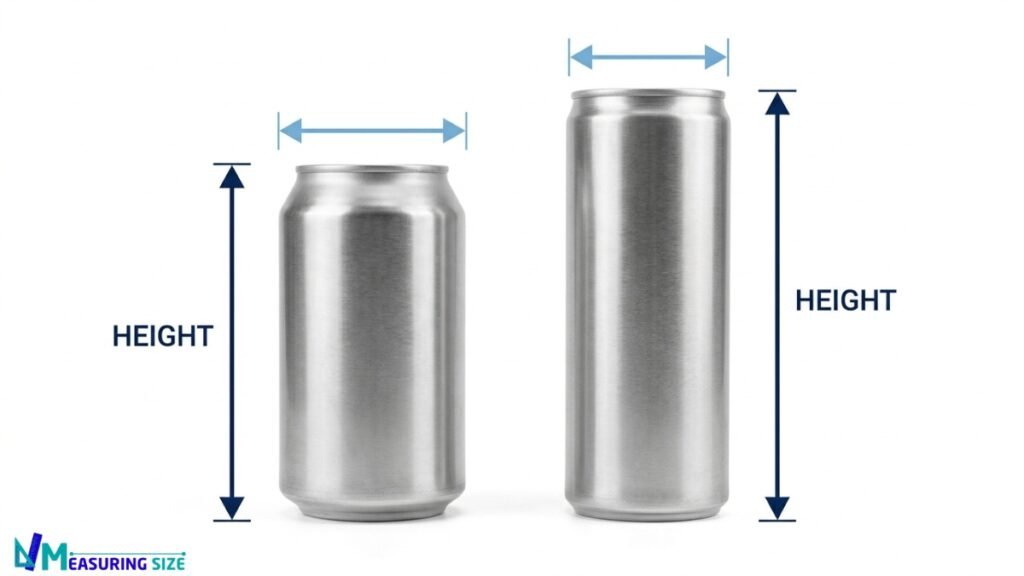

Beverage cans come in different heights and diameters, even when they hold the same amount of liquid. A 12 oz standard can, for example, has a different shape from a 12 oz sleek can.

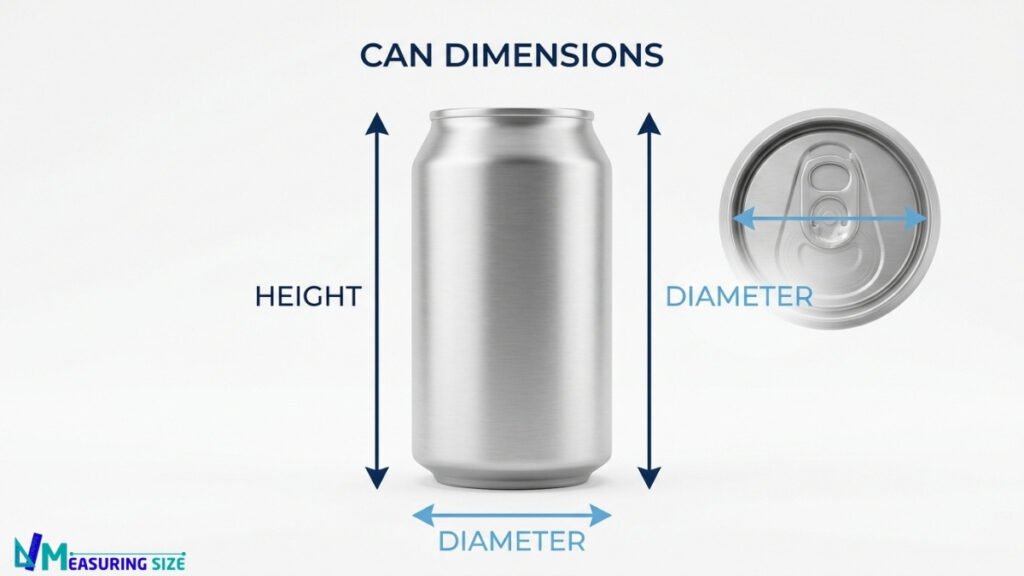

This guide compares common beverage can dimensions formats by capacity, height, and body diameter, while showing why capacity alone does not determine a can’s physical size.
Dimensional Comparison Tables
| Can Size | Common Format | Height | Diameter | Capacity |
|---|---|---|---|---|
| 250 ml / 8.3 oz | Standard | 3.61 in / 91.69 mm | 2.60 in / 66 mm | 250 ml |
| 250 ml / 8.3 oz | Slim | 5.24 in / 133 mm | 2.09 in / 53 mm | 250 ml |
| 12 oz / 355 ml | Standard | 4.81 in / 122.22 mm | 2.60 in / 66 mm | 355 ml |
| 12 oz / 355 ml | Sleek | 6.16 in / 156.59 mm | 2.28 in / 58 mm | 355 ml |
| 16 oz / 473 ml | Standard | 6.19 in / 157.23 mm | 2.60 in / 66 mm | 473 ml |
| 19.2 oz / 568 ml | Standard | 7.41 in / 188.21 mm | 2.60 in / 66 mm | 568 ml |
| 24 oz / 710 ml | Documented large can | 7.60 in / 193.2 mm | 2.86 in / 72.7 mm | 710 ml |
| 32 oz / 946 ml | Crowler | 7.60 in / 193 mm | 2.86 in / 73 mm | 946 ml |

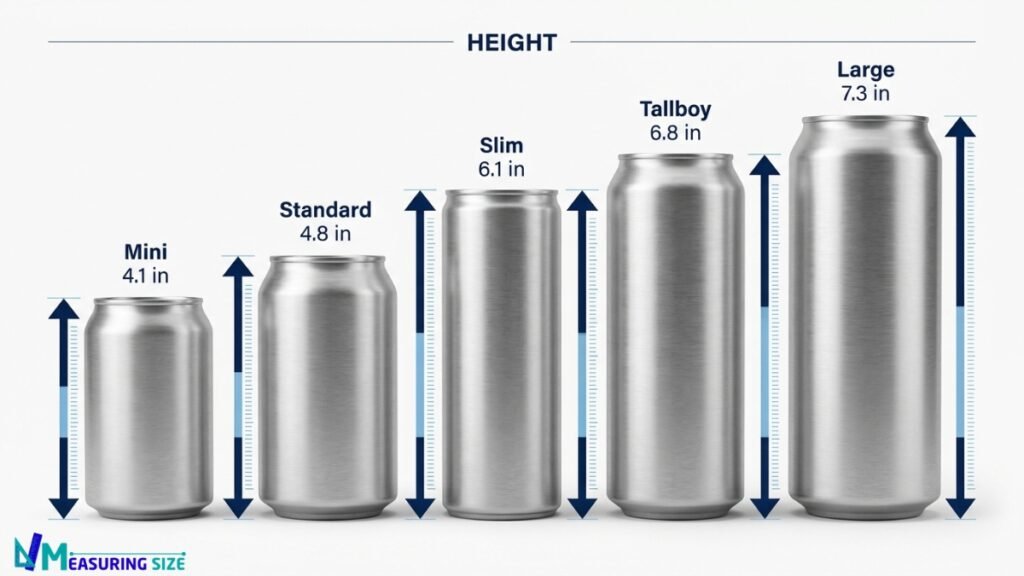

Standard Beverage Can Dimensions by Size
7.5 oz Mini Can Dimensions
A 7.5 oz mini can is a smaller beverage format, but its exact dimensions depend on the can design. Because mini cans are available in different body shapes, capacity alone does not define a single height and diameter.
Use the specific cans’ published specifications when exact measurements are required.
8.4 oz Energy Can Dimensions
An 8.4 oz energy can is available in several slim and sleek formats, so its physical dimensions are not universal. A 250 ml slim can, for example, can measure about 5.24 inches (133 mm) tall and 2.09 inches (53 mm) in diameter.
The exact dimensions depend on the can format rather than capacity alone.
12 oz Standard Can Dimensions
- Height: Approximately 4.81 inches (122 mm)
- Body diameter: Approximately 2.60 inches (66 mm)
- Capacity: 12 oz (355 ml)
These measurements describe a standard 12 oz beverage-can format. Other 12 oz formats, such as sleek cans, use a narrower body and greater height.
12 oz Slim/Sleek Can Dimensions
- Overall height: Approximately 6.16 inches (156.59 mm)
- Body diameter: Approximately 2.28 inches (58 mm)
- Capacity: 12 oz (355 ml)
A 12 oz sleek can is taller and narrower than a standard 12 oz can. For comparison, a standard format is about 4.81 inches (122 mm) tall and 2.60 inches (66 mm) in diameter. Both hold the same 355 ml capacity, but their physical proportions are different.
16 oz Tallboy/Pint Can Dimensions
A standard 16 oz beverage can is taller than a 12 oz standard can while keeping the same 66 mm body diameter. The term “tallboy” is commonly used for this larger can format.
- Overall Height: Approximately 6.1 inches (157 mm)
- Body Diameter: About 2.60 inches (66 mm)
- Capacity: 16 oz (approximately 473 ml)
19.2 oz Stovepipe Can Dimensions
The 19.2 oz format is taller than the standard 16 oz can while using a similar 66 mm body diameter in this documented standard format. Exact dimensions can vary between can designs.
- Overall Height: Approximately 7.41 inches (188 mm)
- Body Diameter: Around 2.60 inches (66 mm)
- Capacity: 19.2 oz / approximately 568 ml
24 oz Oil Can Dimensions
- Height: 7.60 inches (193.2 mm)
- Body Diameter: 2.86 inches (72.7 mm)
- Capacity: 24 oz (710 ml)
These measurements refer to a specific documented can format, so they should not be treated as universal for every 24 oz can.
Explore: How Long Is 24 Inches? 13 Items That Are About 24 Inches (Ultimate Guide)
32 oz Crowler Dimensions
- Height: 7.60 inches (193 mm)
- Body Dimensions: 2.86 inches (73 mm)
- Capacity: 32 oz (946–950 ml)
Crowlers are distinctive from traditional beverage cans due to their wider body and larger capacity. Unlike standard 12 oz or 16 oz cans, which are crafted for individual servings, crowlers provide a way to enjoy more of your preferred drink without sacrificing freshness.

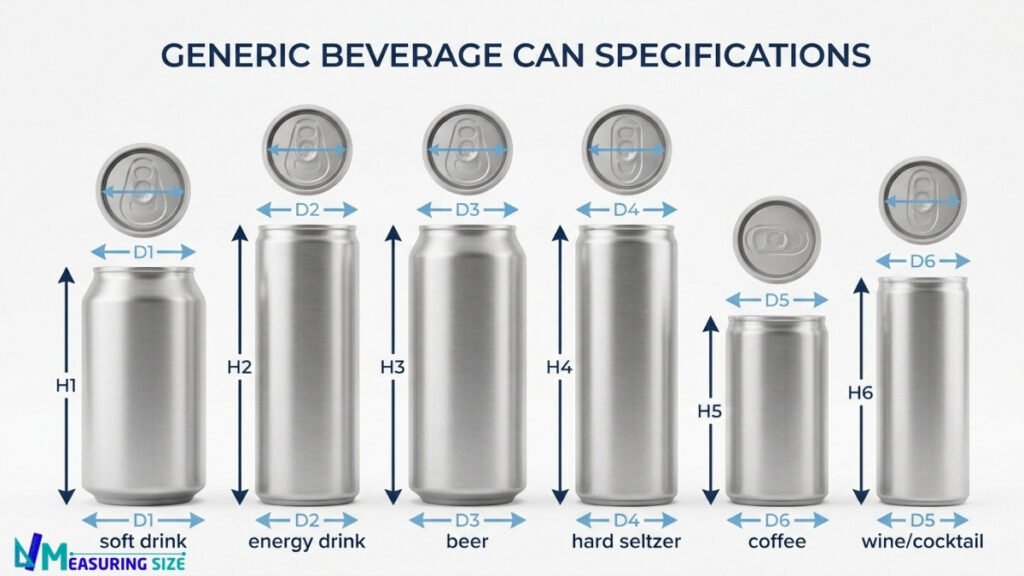

Beverage Can Dimensions by Category
Soft Drink Can Dimensions
- Height: 4.81 inches (122 mm)
- Body Diameter: 2.60 inches (66 mm)
- Capacity: standard 12 oz (355 ml)
Smaller and slimmer formats can have different proportions, even when their capacities are similar.
For an exact measurement, check the specifications for the particular can format rather than relying on capacity alone.
Learn: How Long Is 12 Inches? 14 Common Things About 12 Inches Long
Energy Drink Can Dimensions
Energy drinks are sold in several can formats, including slim and sleek designs. Other energy-drink formats may use different dimensions.
- Height: 5.24 inches (133 mm)
- Diameter: 2.09 inches (53 mm)
- Capacity: 250 ml slim
Craft Beer Can Dimensions
Craft beer is sold in several can formats, including standard 12 oz, 16 oz, and larger 19.2 oz cans.
A standard 12 oz can is about:
- Height: 4.81 inches (122 mm)
- Diameter: 2.60 inches (66 mm)
- Capacity: 12 oz (355 ml)
A standard 16 oz can is about:
- Height: 6.19 inches (157 mm)
- Diameter: 2.60 inches 66 mm
- Capacity: 16 oz
Larger formats can use different proportions, so the exact dimensions should be checked for the specific can format.
Hard Seltzer Can Dimensions
Hard seltzer cans are available in standard, slim, and sleek formats.
A standard 12 oz can be about:
The exact dimensions depend on the can format, not simply the 12 oz capacity.
- Height: 4.81 inches (122 mm)
- Diameter: 2.60 inches (66 mm)
- Capacity: 12 oz (355 ml)
A 12 oz sleek can can be about:
- Height: 6.16 inches (156.59 mm)
- Diameter: 28 inches (58 mm)
- Capacity: 16 oz
Ready-to-Drink Coffee Can Dimensions
Ready-to-drink coffee cans are available in several sizes and shapes. Standard formats can use the same dimensions found in other beverage cans, while slim and sleek formats are taller and narrower.
For example, a standard 12 oz can is approximately 4.81 inches (122 mm) tall and 2.60 inches (66 mm) in diameter.
- Height: 4.81 inches (122 mm)
- Diameter: 2.60 inches (66 mm)
- Capacity: 12 oz (355 ml)
Because RTD coffee is sold in multiple formats, the exact dimensions depend on the can specification.
Canned Wine & Cocktail Dimensions
Canned wine and ready-to-drink cocktails use a variety of beverage-can formats. Standard, slim, and sleek cans can have noticeably different heights and diameters even when they hold similar amounts.
For example, a 12 oz standard can is about 4.81 inches (122 mm) tall and 2.60 inches (66 mm) in diameter, while a 12 oz sleek format can be about 6.16 inches (156.59 mm) tall and 2.28 inches (58 mm) in diameter.
- Height: 4.81 inches (122 mm)
- Diameter: 2.60 inches (66 mm)
- Capacity: 12 oz (355 ml)
The exact dimensions depend on the can format and capacity.
Final Thoughts
Beverage can dimensions depend on both capacity and can format. Standard, slim, sleek, and larger-format cans can have different heights and diameters even when they hold the same volume.
When exact dimensions matter, use the specifications for the particular can format rather than relying on capacity alone. For most comparisons, the three measurements to check are overall height, body diameter, and capacity.
FAQs
What are the dimensions of a drink can?
There is no single standard dimension for every drink can. Common beverage cans vary in height and diameter depending on their capacity and format. For example, a 12 oz (355 ml) standard can is about 4.81 inches (122.22 mm) tall and 2.60 inches (66 mm) in diameter.
What is the standard size of cans?
A common standard beverage can in the U.S. holds 12 oz (355 ml). A documented 12 oz standard can measures about 4.81 inches (122.22 mm) in height and 2.60 inches (66 mm) in diameter. However, beverage cans are also available in slim, sleek, mini, and larger formats with different dimensions.
What size is a 250 ml can?
A 250 ml can does not have one universal physical size. A standard 250 ml can can measure about 3.61 inches (91.69 mm) tall and 2.60 inches (66 mm) in diameter. A slim 250 ml format can be much taller and narrower, measuring about 5.24 inches (133 mm) tall and 2.09 inches (53 mm) in diameter.
What are the dimensions of a 500 ml can?
A documented 500 ml classic beverage can measures about 6.61 inches (168 mm) tall and 2.60 inches (66 mm) in diameter. This represents a classic can format, not every possible 500 ml can. The physical dimensions can differ when the same capacity is produced in another can style.
What are the dimensions of a 440 ml can?
A documented 440 ml classic beverage can measures about 5.91 inches (150 mm) tall and 2.60 inches (66 mm) in diameter. These dimensions apply to the classic format. Other 440 ml can styles may have different proportions, so the capacity alone should not be used to determine the exact physical dimensions.
What are the dimensions of a 24 oz can?
A documented 24 oz aluminum beverage can measures about 7.60 inches (193 mm) tall and 2.86 inches (72.7 mm) in diameter, with a capacity of about 710 ml. These measurements represent a specific large-can format rather than a universal size for every 24 oz beverage can.
What are the dimensions of a 24 pack of beer cans?
A 24-pack does not have one universal outer dimension because the package size depends on the can format, arrangement, and type of carton or tray. For example, packaging for 24 standard 355 ml cans can be around 399 × 275 × 126 mm internally, but other pack designs can have different dimensions.
